6.2KW-15KWH Solar Hybrid System

Dear Wholesalers, WHC SOLAR is a trusted solar Li-ion storage maker. Our residential systems have high-efficiency panels, 10k-cycle batteries & smart controls (on-grid saves bills, off-grid backups). We offer stable bulk supply, competitive prices & tech support. Partner us!

CE, ROHS approved.
High conversion efficiency, high-transmission rate.
Energy saving, environmental-friendly.
Advanced technology, strict quality control system.
Easy installation, safe operation, free maintenance.

Chat now

Description

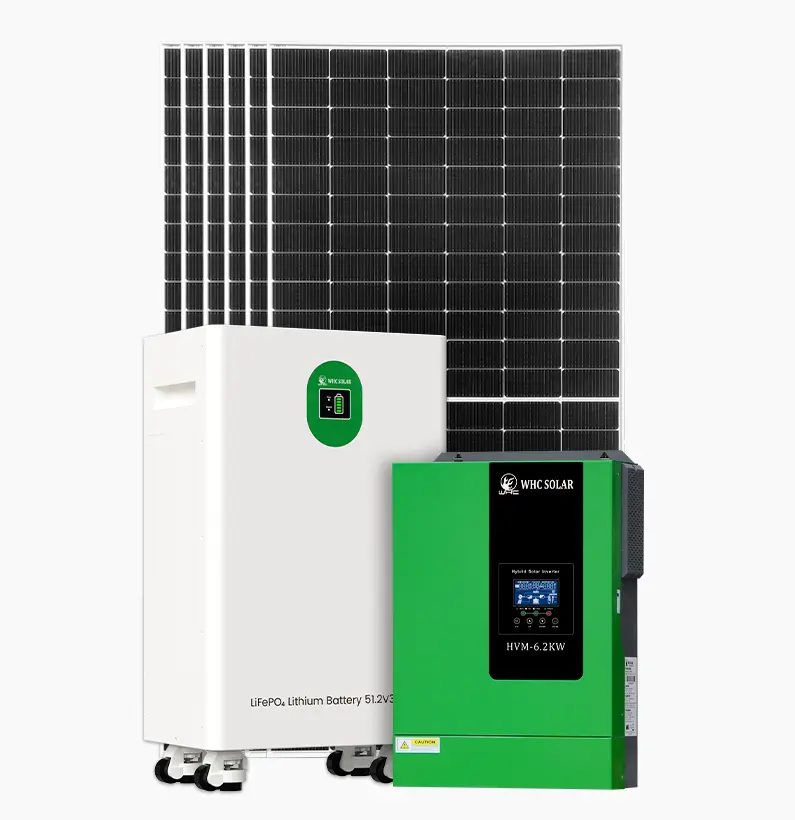

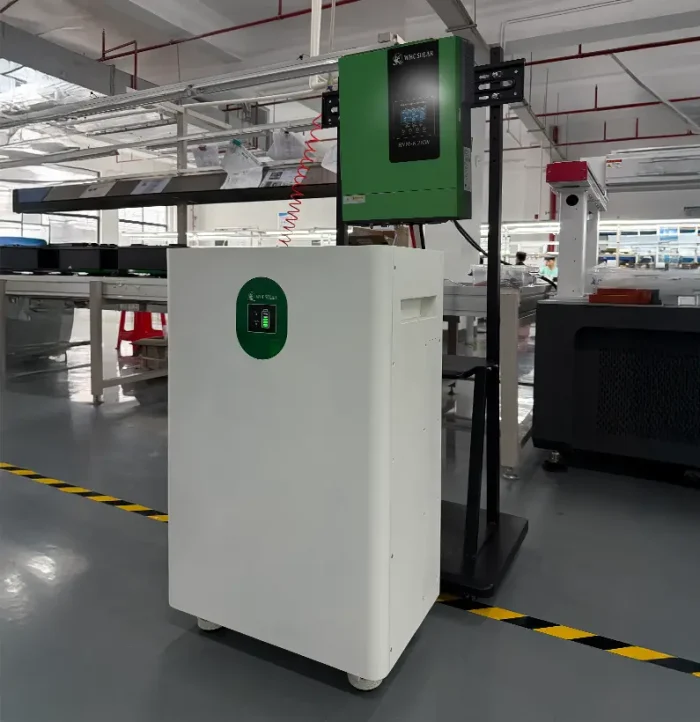

WHC 6.2KW-15KWH Solar Hybrid System

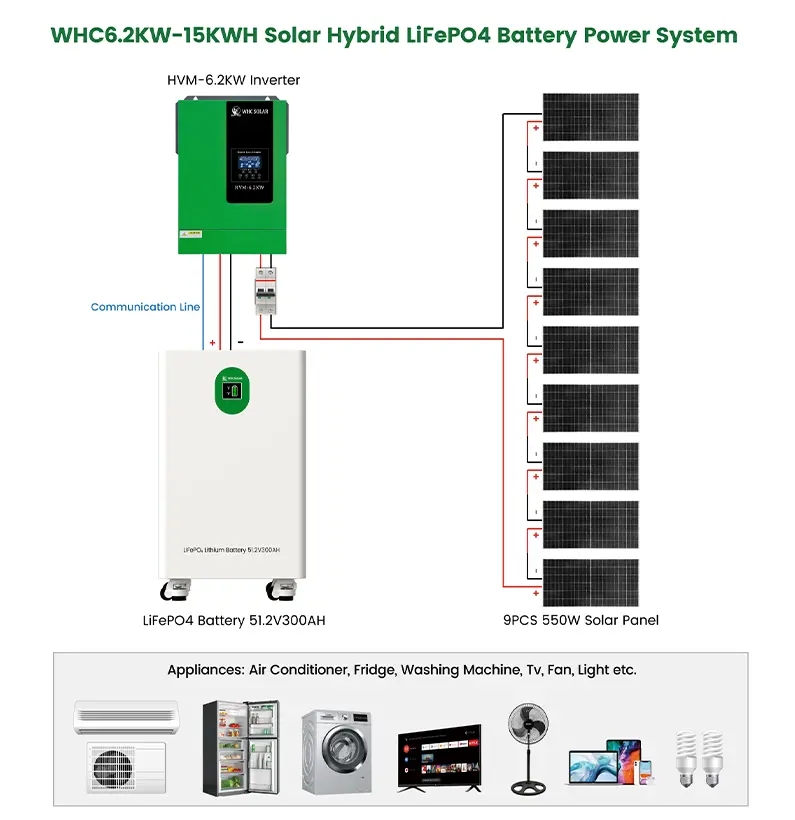

6.2KW Hybrid Inverter + 15KWH Lithium Battery System: Daytime, PV panels produce DC power, converted to AC by the inverter—part powers loads, surplus stores in the battery. Night/low PV output: Battery discharges to supply power. Inverter switches off-grid/grid-tie: Grid-tie allows supplementing power or selling surplus; off-grid uses battery for stable supply.

SHOP NOW

Why Choose Us

Our system comprises WHC-550M-144 solar panels, HVM 6.2KW inverter & WHC-S-51.2V300AH battery: Panels (PERC 182, 1000V), inverter (120A MPPT, 93% eff) & battery (99% conversion) cut costs via max solar use; panels pass TUV (-40~85℃, 5400Pa), inverter has pure sine wave/IP21, battery (LiFePO4, -20~60℃) ensures all-environment stability; inverter supports multi-modes + generator, with optional WiFi/BMS/EQ for easy management; battery’s 6000 cycles & panel’s 25-year warranty lower lifecycle costs.

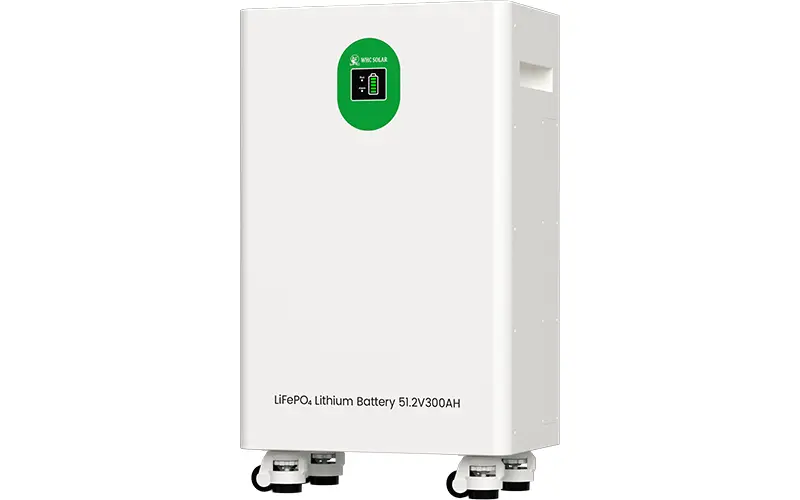

Solar Lithium Battery

Model: WHC-S-51.2V.300Ah

Type: LiFePO4 Lithium Battery

Nominal Voltage: 51.2V

Nominal Capacity: 300Ah

Energy: 15.36KWH

BMS Max Discharge Current: 200A

Lifespan: 10 years

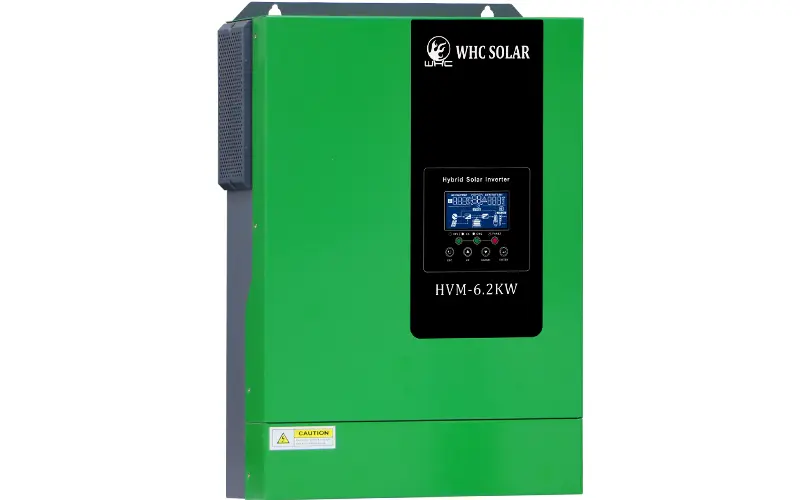

Solar Inverter

Model: HVM-6.2KW

Rated Output Power: 6.2KW

Max PV Input Power: 6.5KW

DC Input Voltage: 48VDC

AC Output Voltage: 220/230VAC

MPPT Voltage: 60-500VAC

MPPT Current: 120A

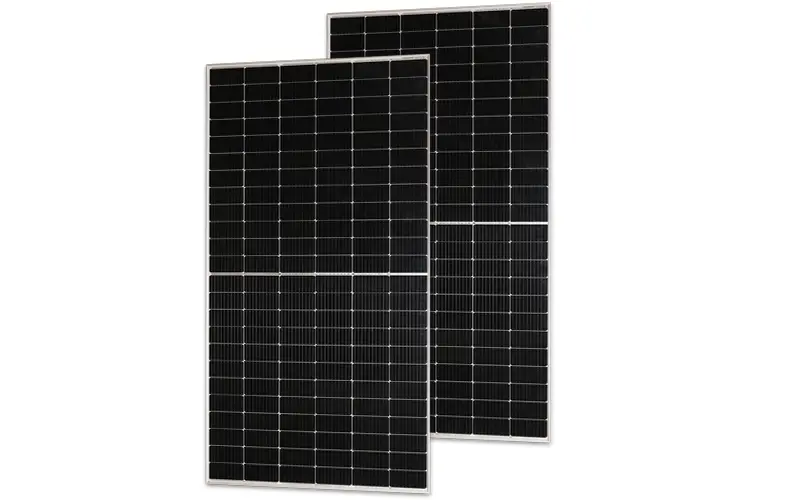

Mono Solar Panel

Model: WHC-550M-144

Voc: 49.95V; Vmp: 41.97V

IMP: 12.97A; ISC: 13.86A

Module Efficiency: 20.9%

Operating Module Temperature: -40°c to +85°C

Maximum system Voitage: 1500VDC

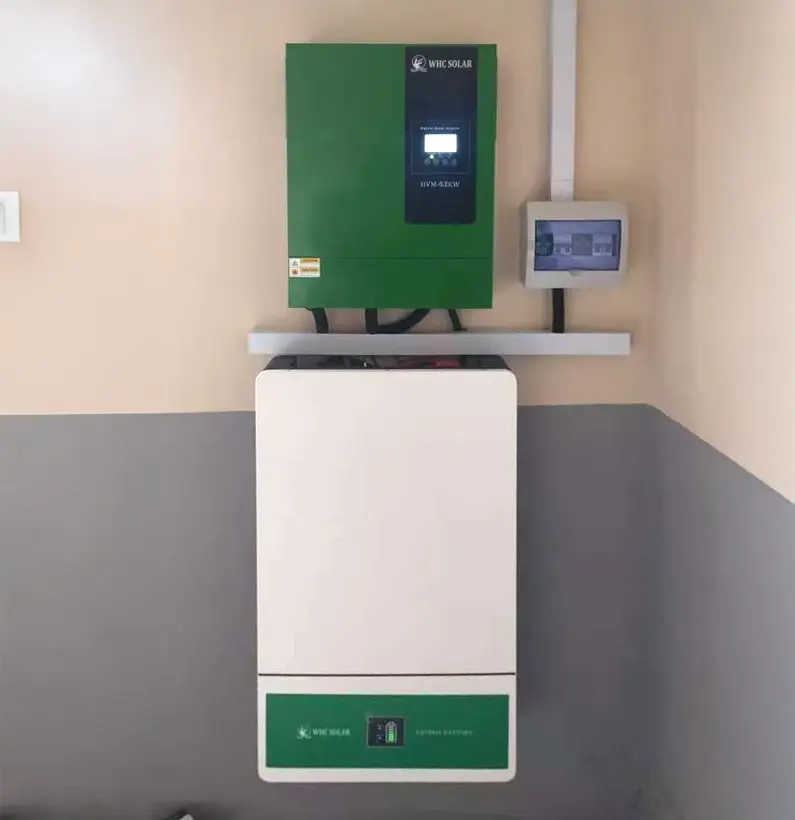

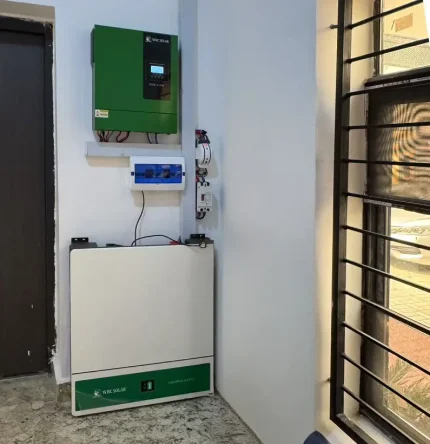

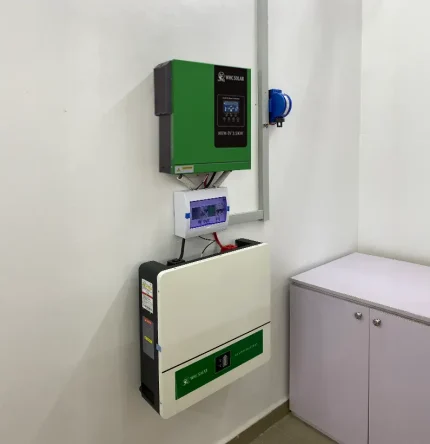

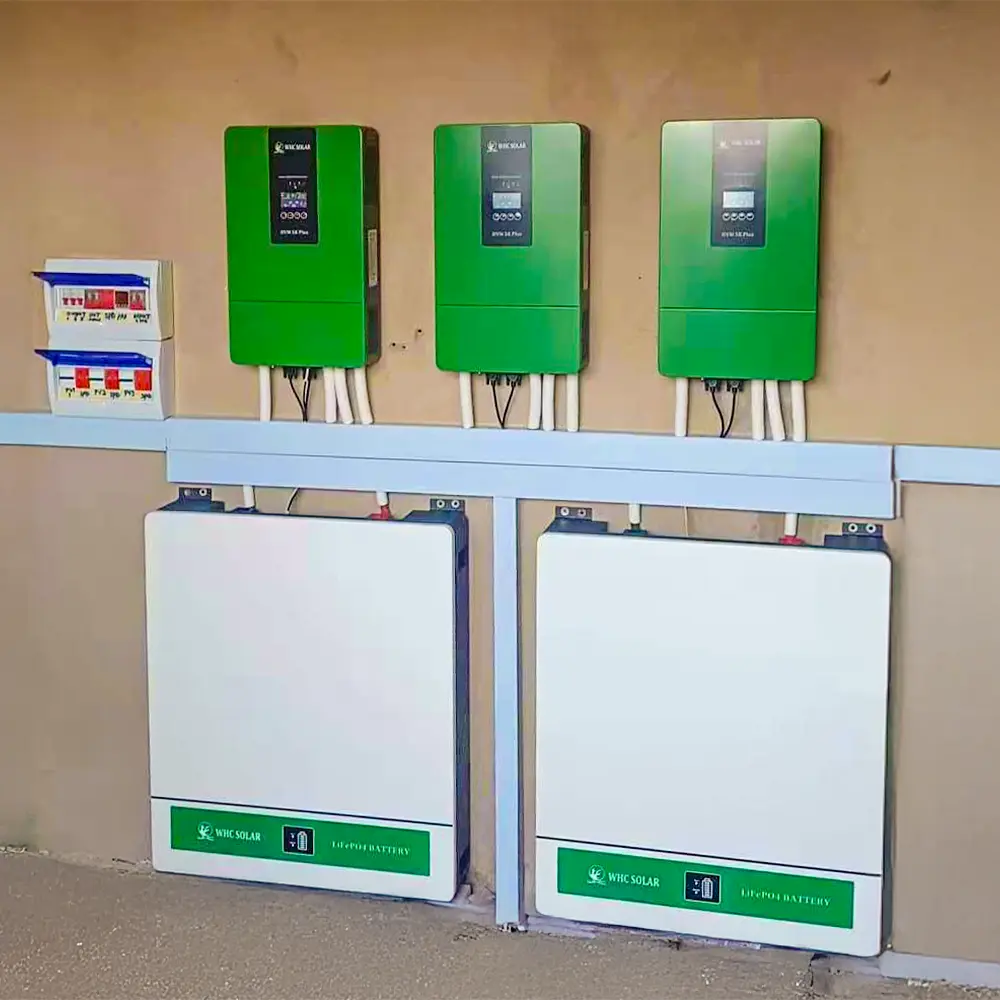

Relevant Cases

WHC has permeated every household, with its products receiving overwhelmingly positive reviews.

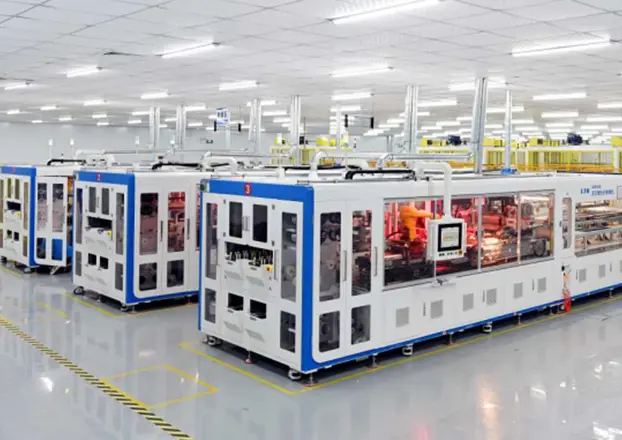

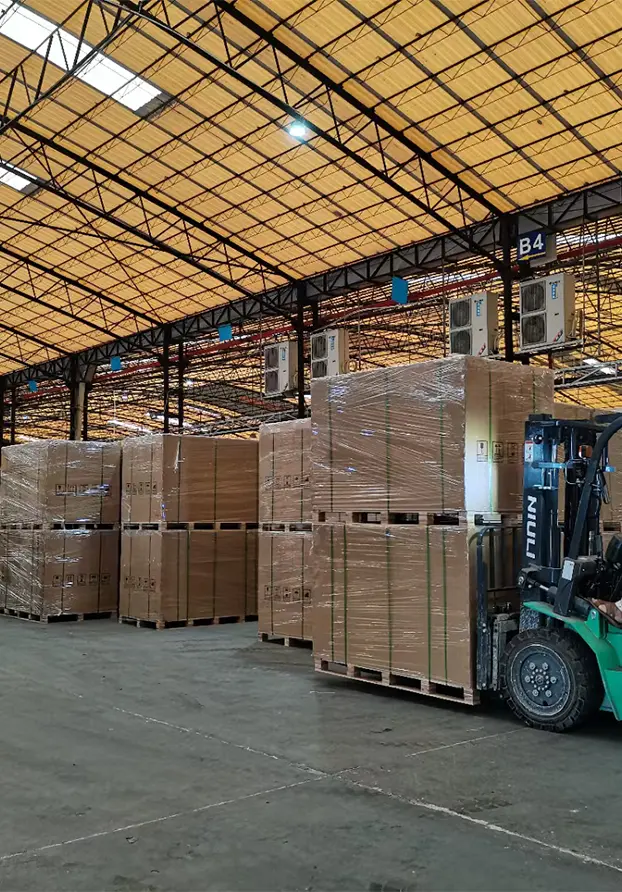

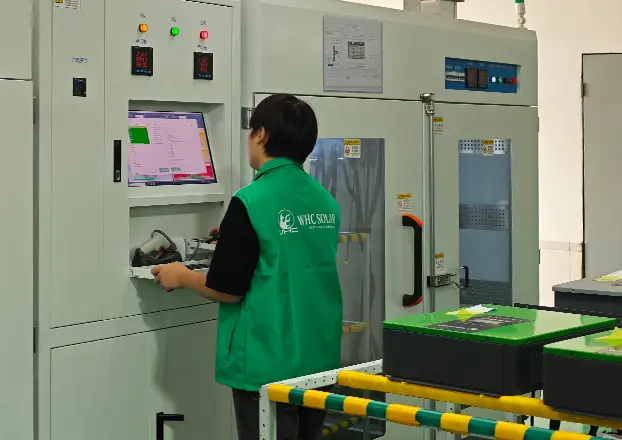

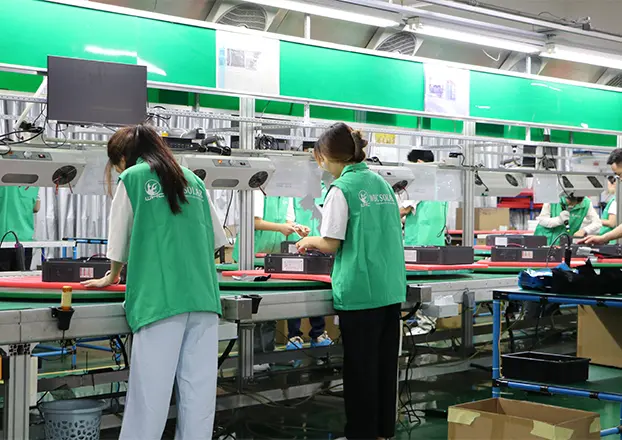

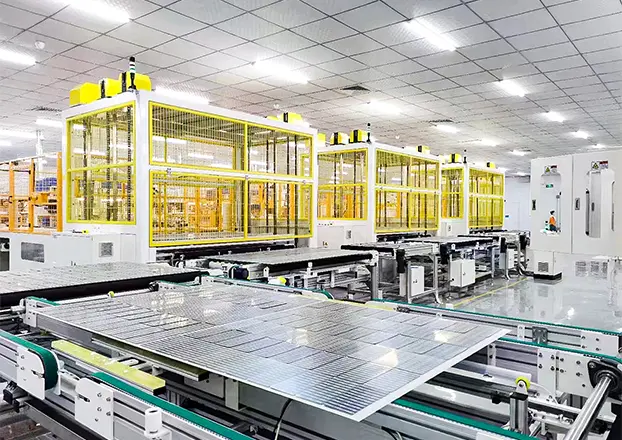

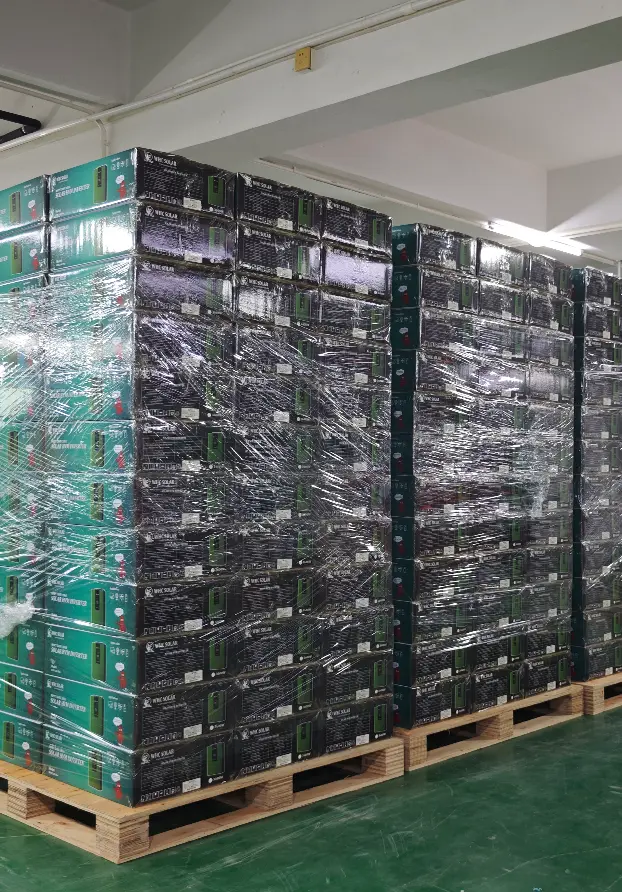

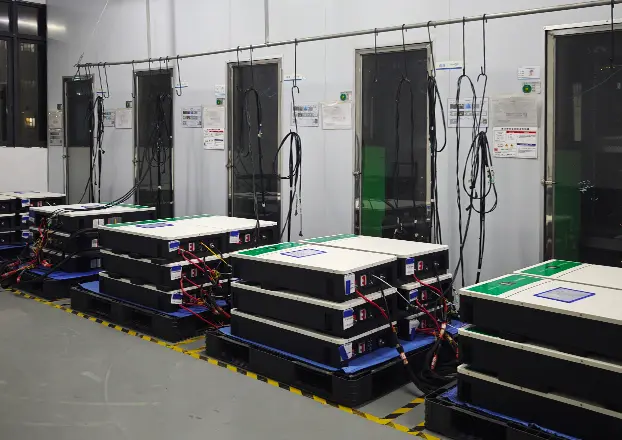

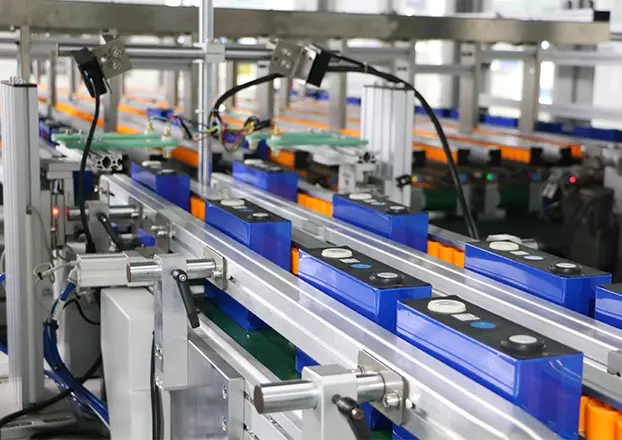

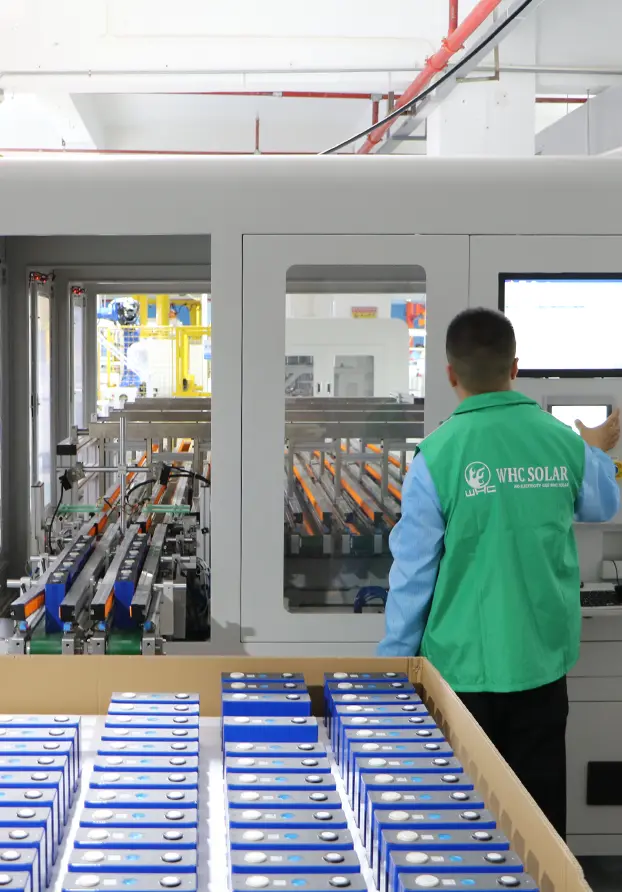

Our Factory

Our solar factory specializes in producing the solar lithium battery hybrid system, offering stable supply, professional tech support, and reliable after-sales service to empower clients in the energy storage market.
