6.2KW-10KWH Solar Hybrid System

Dear Wholesalers, WHC SOLAR is a trusted solar Li-ion storage maker. Our residential systems have high-efficiency panels, 10k-cycle batteries & smart controls (on-grid saves bills, off-grid backups). We offer stable bulk supply, competitive prices & tech support. Partner us!

CE, ROHS approved.
High conversion efficiency, high-transmission rate.
Energy saving, environmental-friendly.
Advanced technology, strict quality control system.
Easy installation, safe operation, free maintenance.

Chat now

Description

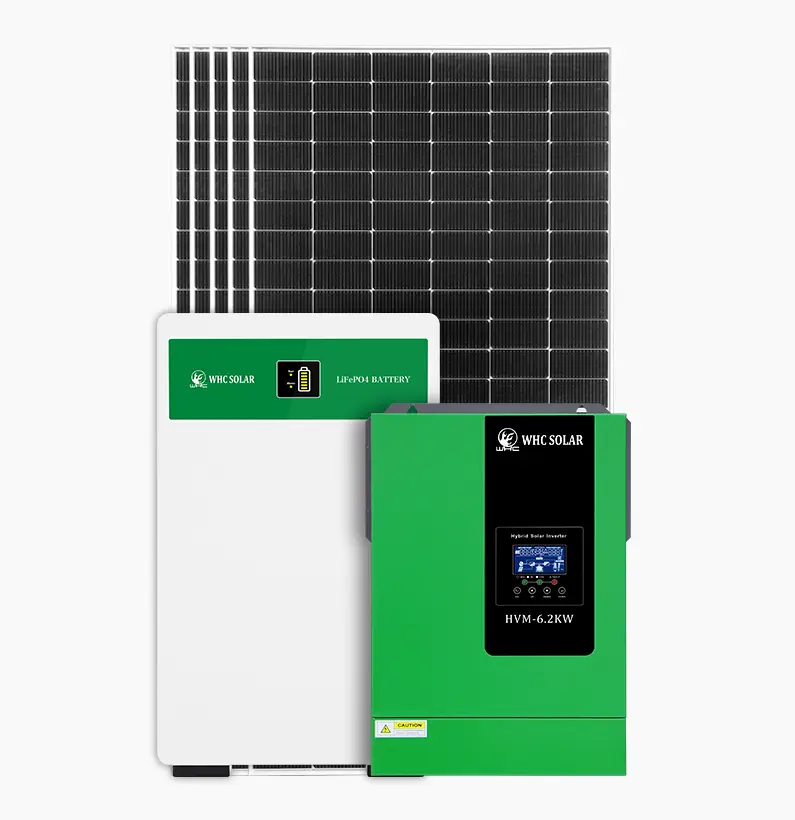

WHC 6.2KW-10KWH Solar Hybrid System

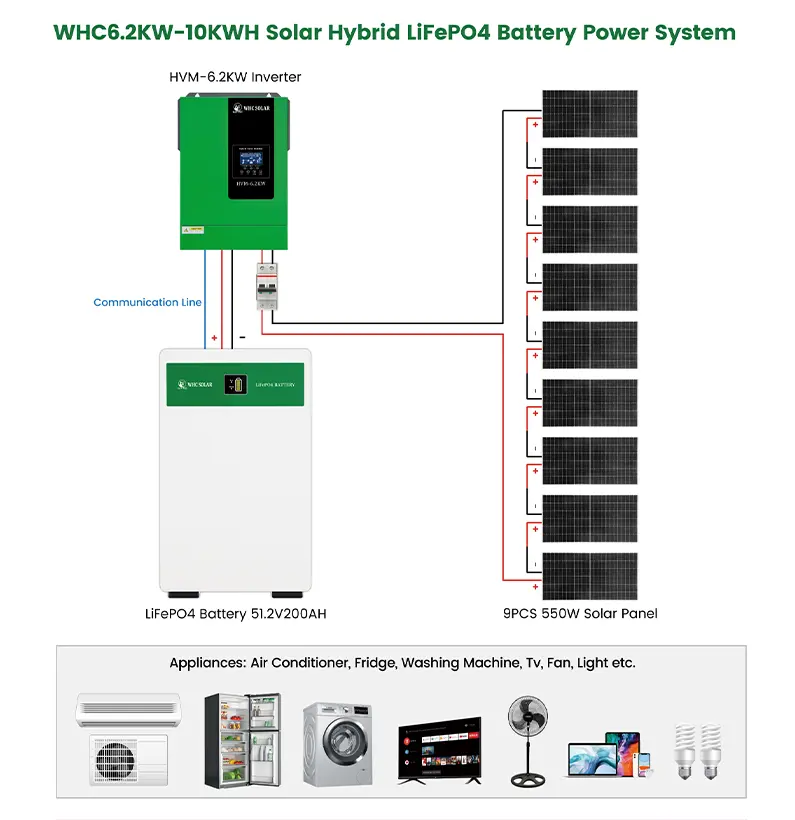

6.2KW Hybrid Inverter + 10KWH Lithium Battery System: Daytime, PV panels produce DC power, converted to AC by the inverter—part powers loads, surplus stores in the battery. Night/low PV output: Battery discharges to supply power. Inverter switches off-grid/grid-tie: Grid-tie allows supplementing power or selling surplus; off-grid uses battery for stable supply.

SHOP NOW

Why Choose Us

Choose WHC solar system (WHC-550M-144 panel, HVM 6.2KW inverter, new wall-mounted 51.2V200AH battery): Panel (550W+1000V cuts BOS cost, TUV weather-resistant, 5400Pa snow load) 25-year warranty; inverter (120A MPPT, 93% eff, pure sine wave + battery-free mode); battery (99% conversion, BMS, -20~60℃ stable discharge, wall-mounted) 3000+ cycles, efficient & worry-free.

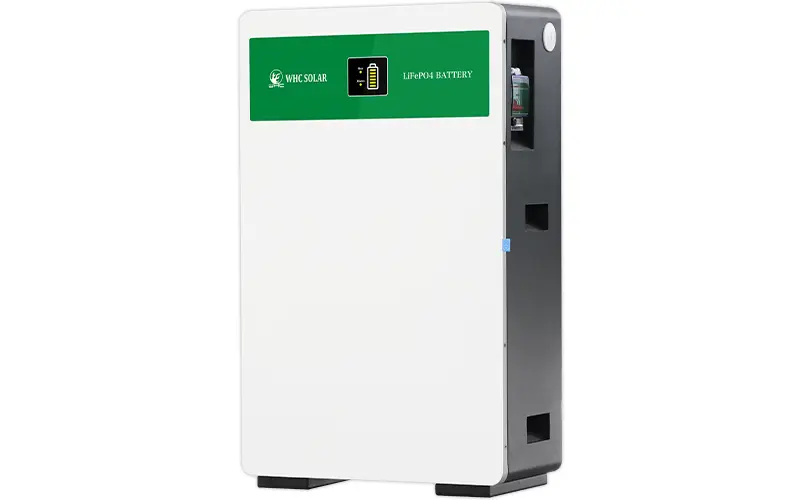

Solar Lithium Battery

Model: WHC-P-51.2V200Ah

Type: LiFePO4 Lithium Battery

Nominal Voltage: 51.2V

Nominal Capacity: 200Ah

Energy: 10.24KWH

BMS Max Discharge Current: 200A

Lifespan: 10 years

Solar Inverter

Model: HVM-6.2KW

Rated Output Power: 6.2KW

Max PV Input Power: 6.5KW

DC Input Voltage: 48VDC

AC Output Voltage: 220/230VAC

MPPT Voltage: 60VDC-500VDC

MPPT Current: 120A

Mono Solar Panel

Model: WHC-550M-144

Voc: 49.95V; Vmp: 41.97V

IMP: 12.97A; ISC: 13.86A

Module Efficiency: 20.9%

Operating Module Temperature: -40°c to +85°C

Maximum system Voitage: 1500VDC

Relevant Cases

WHC has permeated every household, with its products receiving overwhelmingly positive reviews.

Our Factory

Our solar factory specializes in producing the solar lithium battery hybrid system, offering stable supply, professional tech support, and reliable after-sales service to empower clients in the energy storage market.
