11KW-15KWH Solar Hybrid System

11KW Hybrid Inverter + 15KWH Lithium Battery Solar System: For home/small commercial use. Inverter: PV/grid/battery (off-grid/grid-tie); battery: 3000+ cycles, anti-explosion, low after-sales. Modular: 30% higher install efficiency, cost-saving. Factory direct, stable stock, tiered rebates, free support—great for household storage!

CE, ROHS approved.
High conversion efficiency, high-transmission rate.
Energy saving, environmental-friendly.
Advanced technology, strict quality control system.
Easy installation, safe operation, free maintenance.

Chat now

Description

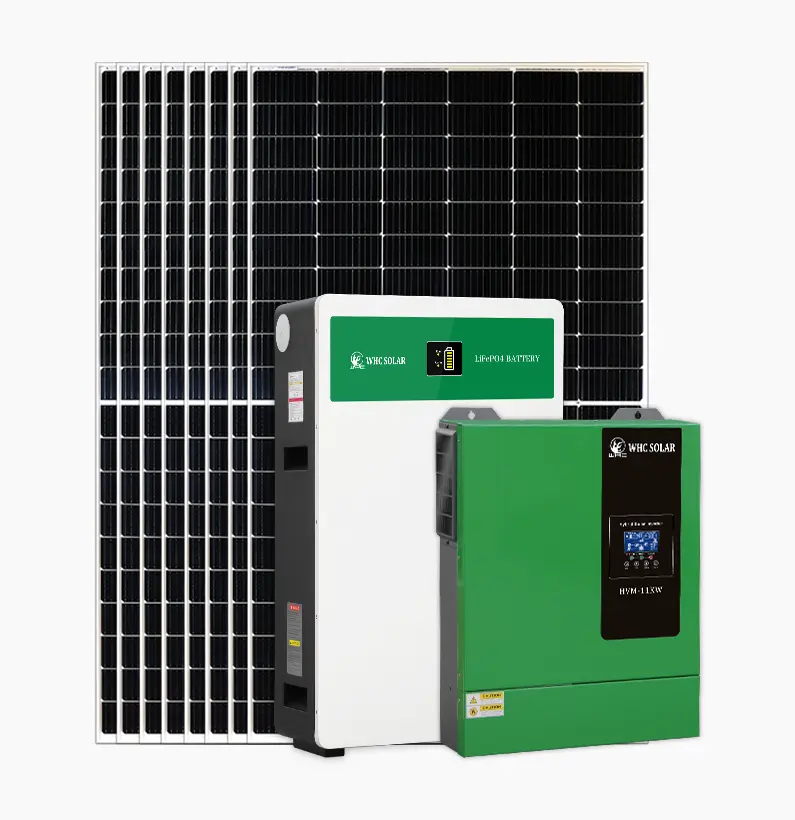

WHC 11KW-15KWH Solar Hybrid System

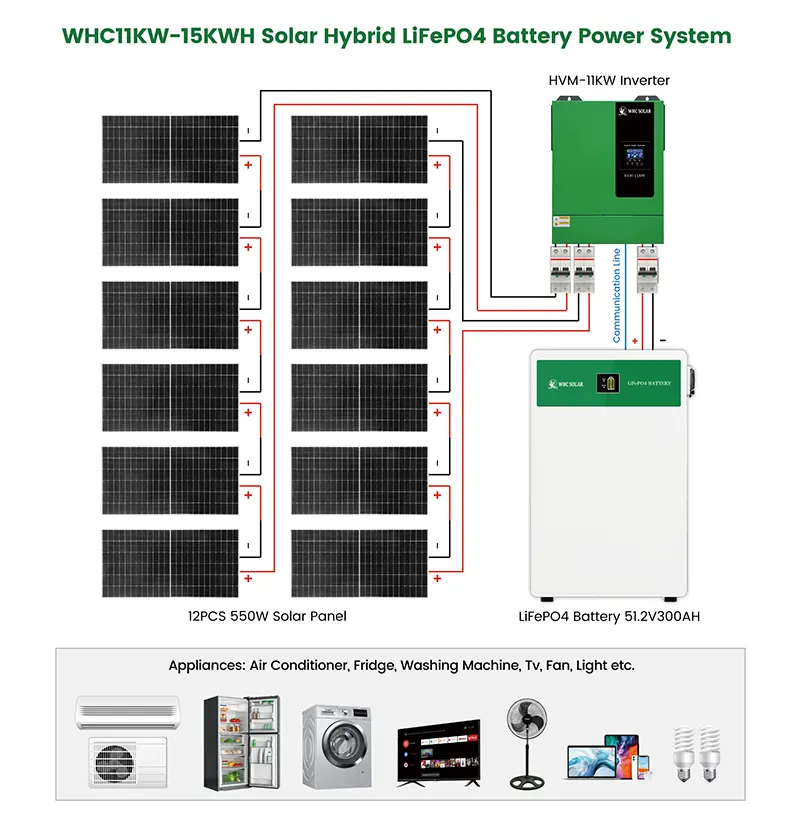

11KW Hybrid Inverter + 15KWH Lithium Battery System: Daytime, PV panels produce DC power, converted to AC by the inverter—part powers loads, surplus stores in the battery. Night/low PV output: Battery discharges to supply power. Inverter switches off-grid/grid-tie: Grid-tie allows supplementing power or selling surplus; off-grid uses battery for stable supply.

SHOP NOW

Why Choose Us

Choose WHC solar system (WHC-550M-144 panel, HVM-11KW inverter, new wall-mounted 51.2V300AH Li-battery): Panel (550W+1000V cuts BOS cost, TUV corrosion-resistant, 5400Pa snow load) with 25-year warranty; inverter (dual MPPT 160A, 94% efficiency, pure sine wave) supports battery-free mode; battery (99% conversion, built-in BMS, space-saving wall-mounted) 3000 cycles—efficient, weather-resistant, worry-free.

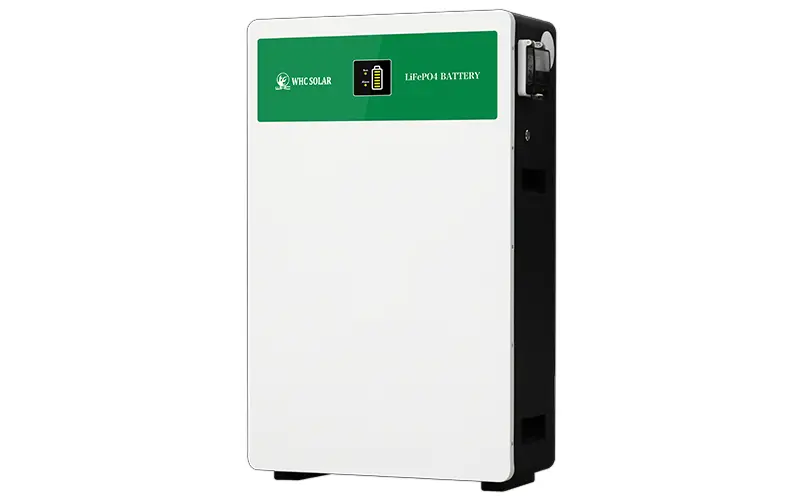

Solar Lithium Battery

Model: WHC-P-51.2V.300Ah

Type: LiFePO4 Lithium Battery

Nominal Voltage: 51.2V

Nominal Capacity: 300Ah

Energy: 15.36KWH

BMS Max Discharge Current: 200A

Lifespan: 10 years

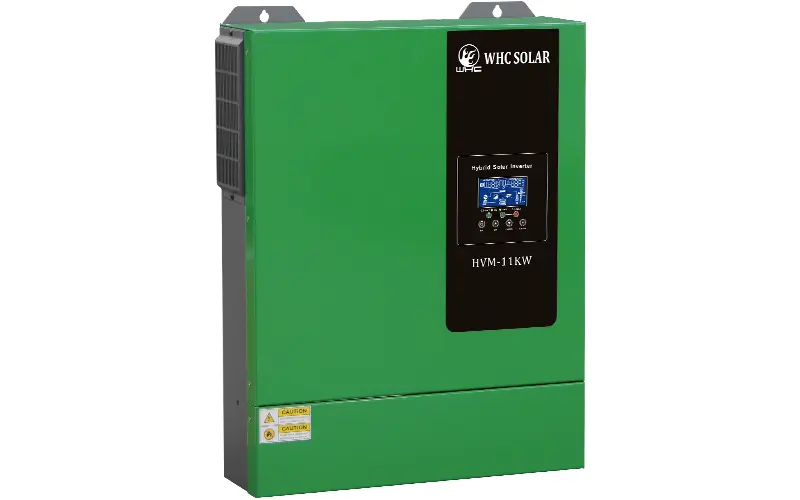

Solar Inverter

Model: HVM-11KW

Rated Output Power: 11KW

Max PV Input Power: 11KW

DC Input Voltage: 48VDC

AC Output Voltage: 220/230/240VAC

MPPT Voltage: 60VDC-500VDC

MPPT Current: 160A

Mono Solar Panel

Model: WHC-550M-144

Voc: 49.95V; Vmp: 41.97V

IMP: 12.97A; ISC: 13.86A

Module Efficiency: 20.9%

Operating Module Temperature: -40°c to +85°C

Maximum system Voitage: 1500VDC

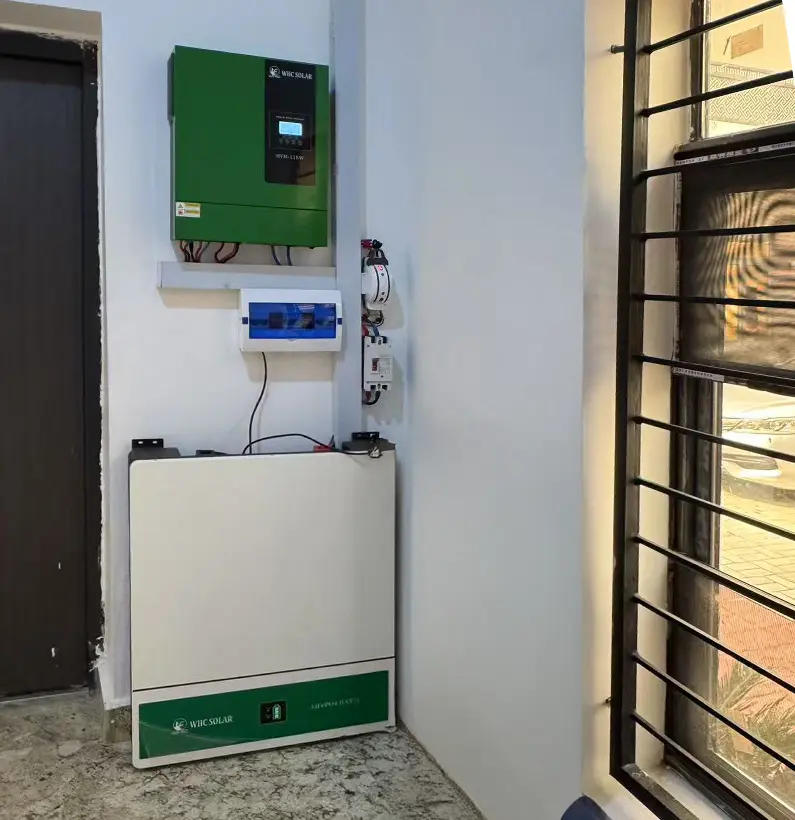

Relevant Cases

WHC has permeated every household, with its products receiving overwhelmingly positive reviews.

Our Factory

Our solar factory specializes in producing the solar lithium battery hybrid system, offering stable supply, professional tech support, and reliable after-sales service to empower clients in the energy storage market.
